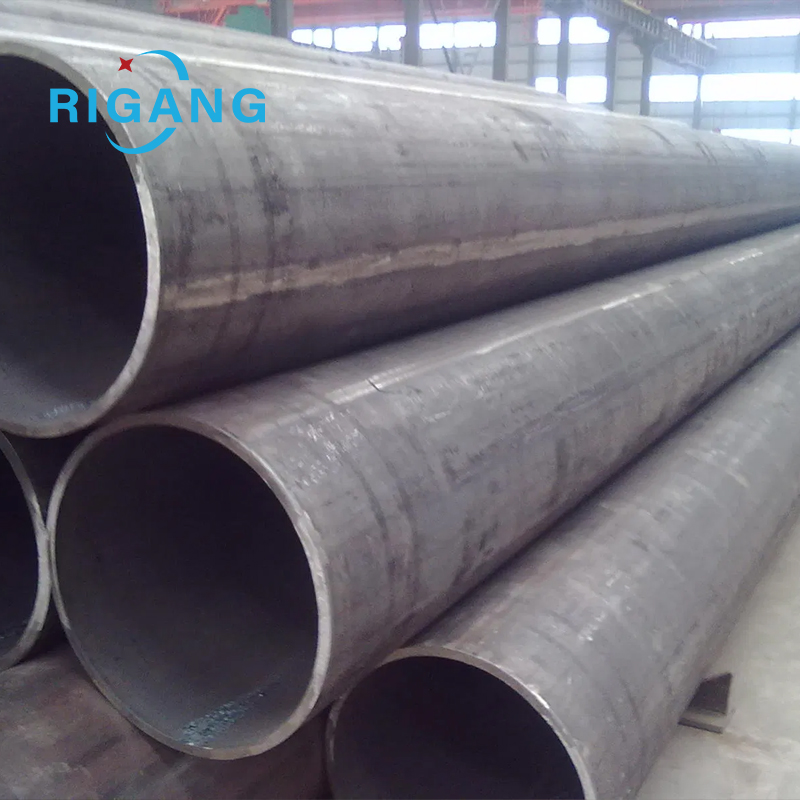

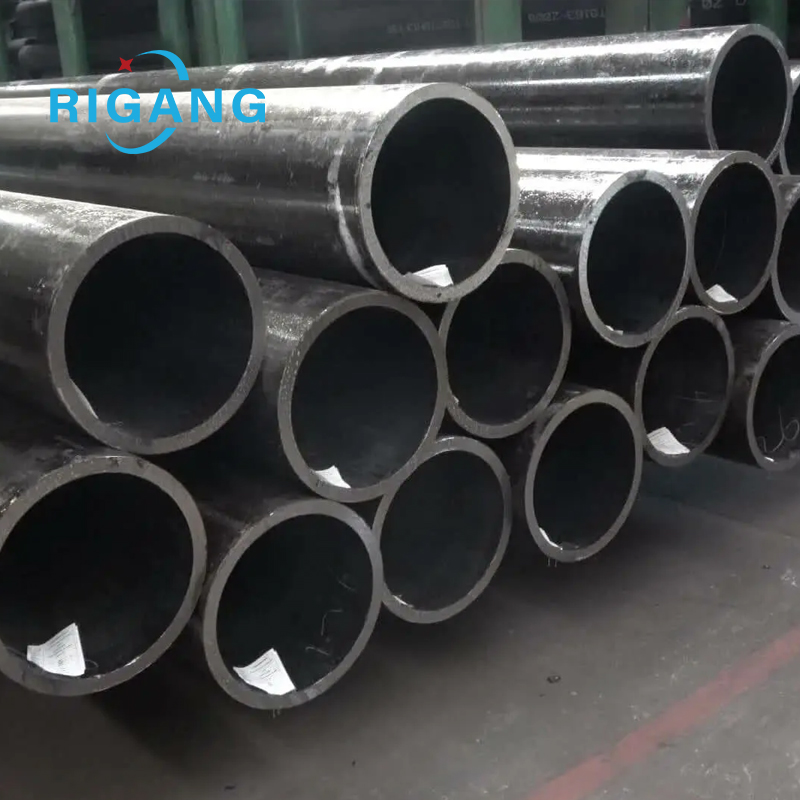

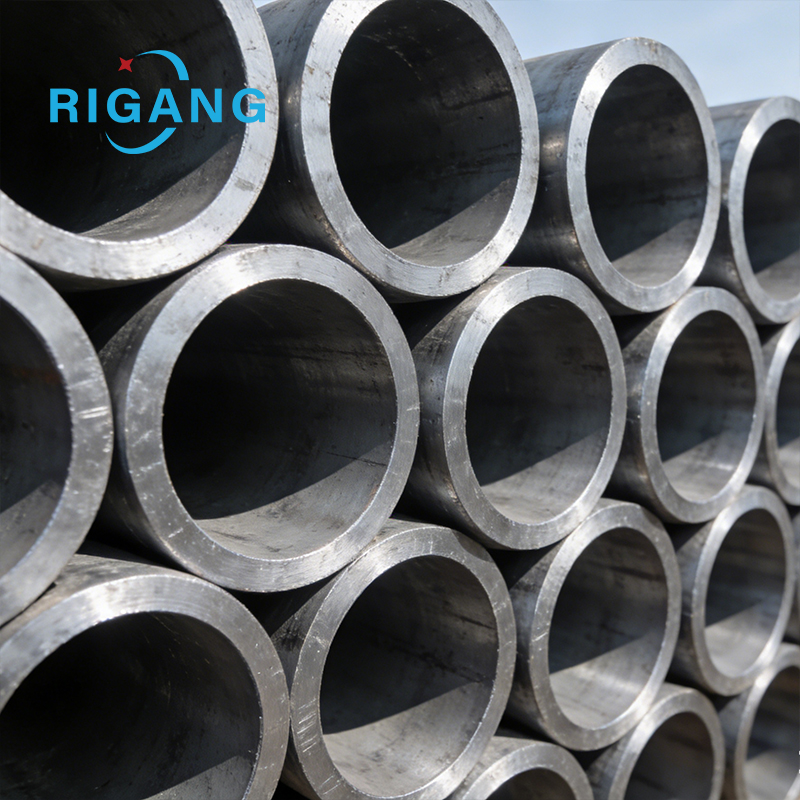

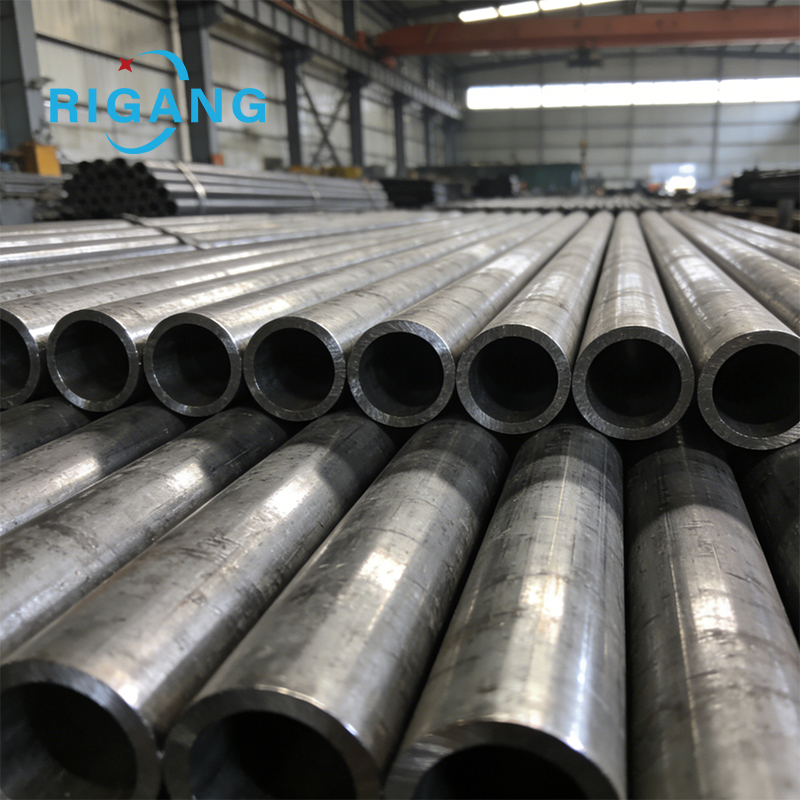

Alloy seamless tube

Alloy seamless tube
Alloy seamless steel pipes can be seen as a "super-evolution" of carbon steel seamless steel pipes. Based on ordinary carbon steel pipes, they incorporate various alloying elements such as chromium (Cr), nickel (Ni), molybdenum (Mo), and vanadium (V), resulting in a qualitative leap in specific properties. If carbon steel pipes are the "skeleton" of industry, then alloy seamless steel pipes are the "special forces" capable of coping with extreme environments.

No. 121, Daqiao Road, Licheng District, Jinan City

Product Description

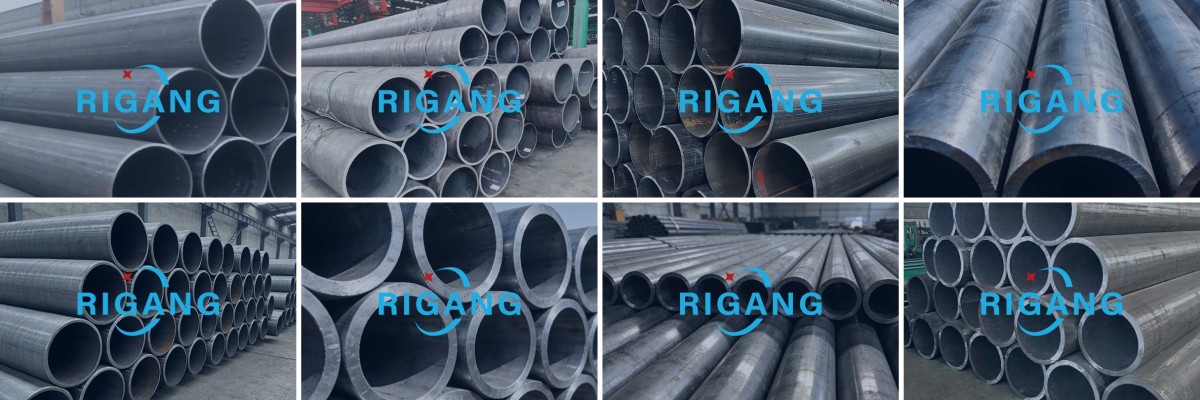

Spot warehousing
Product Inspection
Product Measurement
Customer Feedback
Parameter categoriesSpecific projectsDetailed description/numerical range
Specifications and dimensionsOuter diameter (OD)6mm - 610mm

Precision/Small Diameter: 6mm - 219mm

Industrial Large Diameter: Up to 610mm and above

Wall thickness (WT)0.5mm - 60mm

Thin-walled precision tubes down to 0.5mm

Thick-walled high-pressure tubes up to 60mm

length3m - 12m, custom length production supported
Material gradeChromium-molybdenum steel15CrMo, 12Cr1MoV (High temperature and high pressure resistant, used in boilers)

P11, P22, P91 (American standard, used in power plants)

High-pressure boiler steel20G (Carbon steel, but often classified as such)

15CrMoG (For high-pressure boilers)

Special alloys

Inconel 718 (N07718) (Nickel-based, resistant to extreme corrosion)

Alloy 800H (N08810) (Heat-resistant, creep-resistant)

Implementation StandardsChinese National Standard (GB)GB/T 5310 (For high-pressure boilers)

GB/T 6479 (For fertilizer equipment)

GB/T 9948 (For petroleum cracking)

American Standard (ASTM)ASTM A335 (Ferritic alloy steel for high-temperature applications)

ASTM A213 (Alloy steel for boilers and superheaters)

Mechanical propertiestensile strength≥ 490 MPa
Yield strength≥ 245 MPa
elongation≥ 22%


仓库现货5


01

Acid and alkali resistance test

02

Zinc layer experiment

03

Bending test

04

Yield strength test

05

Tensile strength test

06

Spectral detection

07

Hardness testing

08

Chemical composition detection

壁厚测量

Thickness measurement

厚度测量

Thickness measurement

厚度测量666

Thickness measurement

半径测量

Radius measurement

直径测量

Diameter measurement

直径测量2

Diameter measurement

长度测量

Length measurement

涂层测量

Coating measurement
