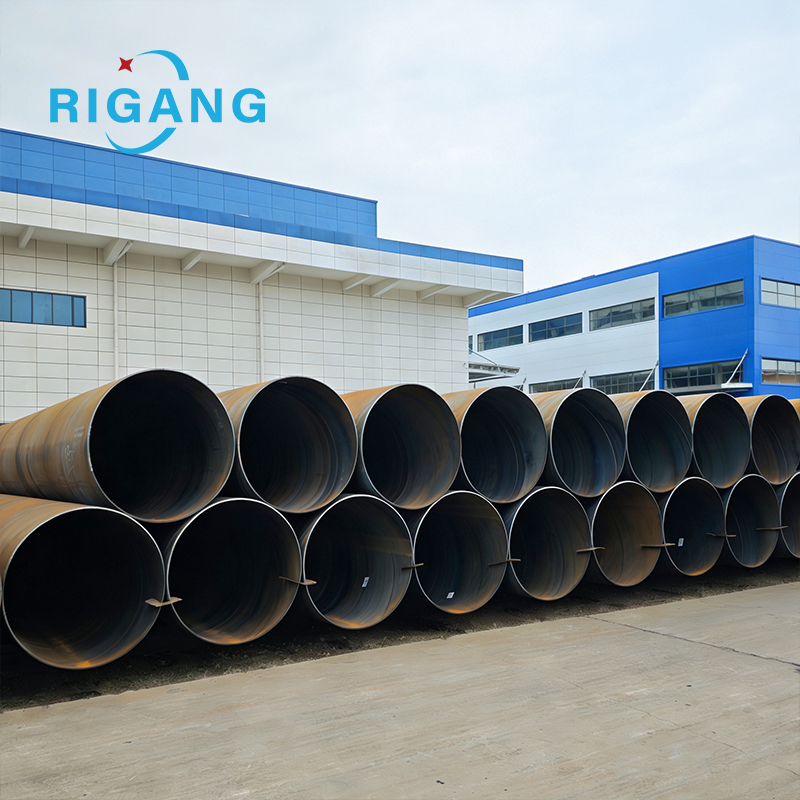

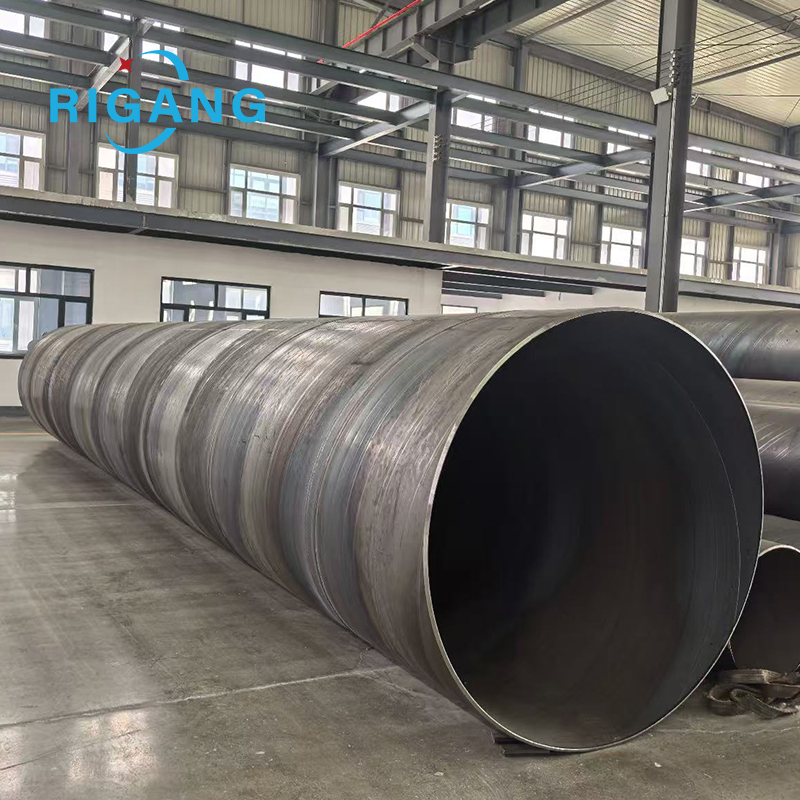

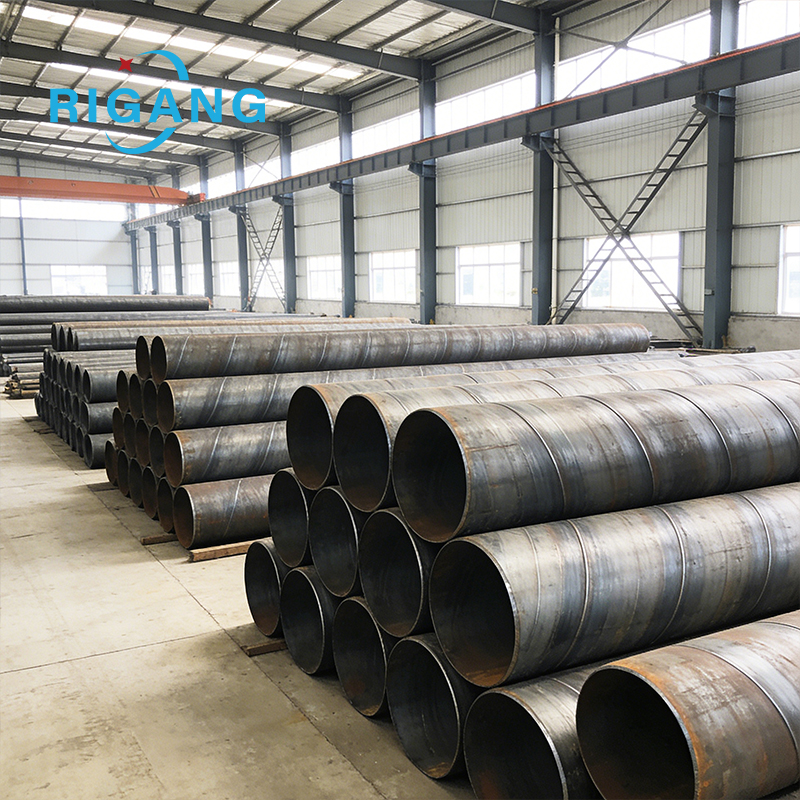

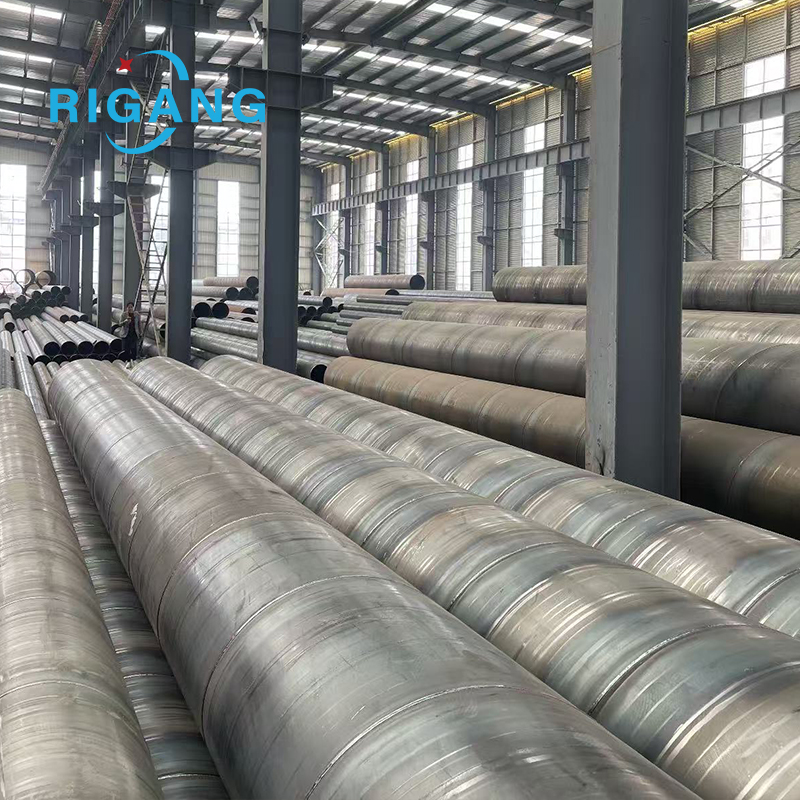

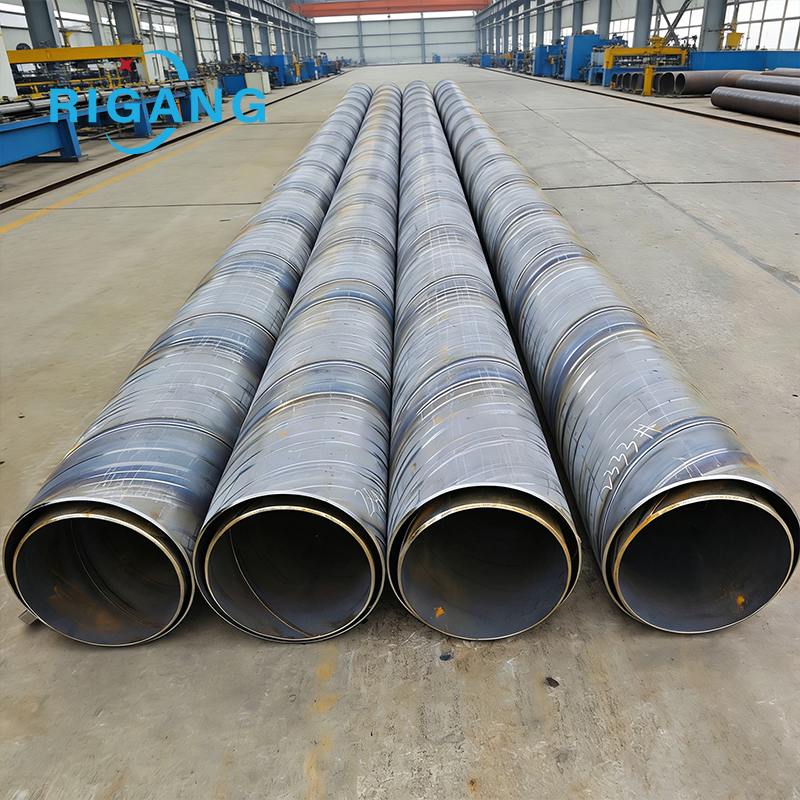

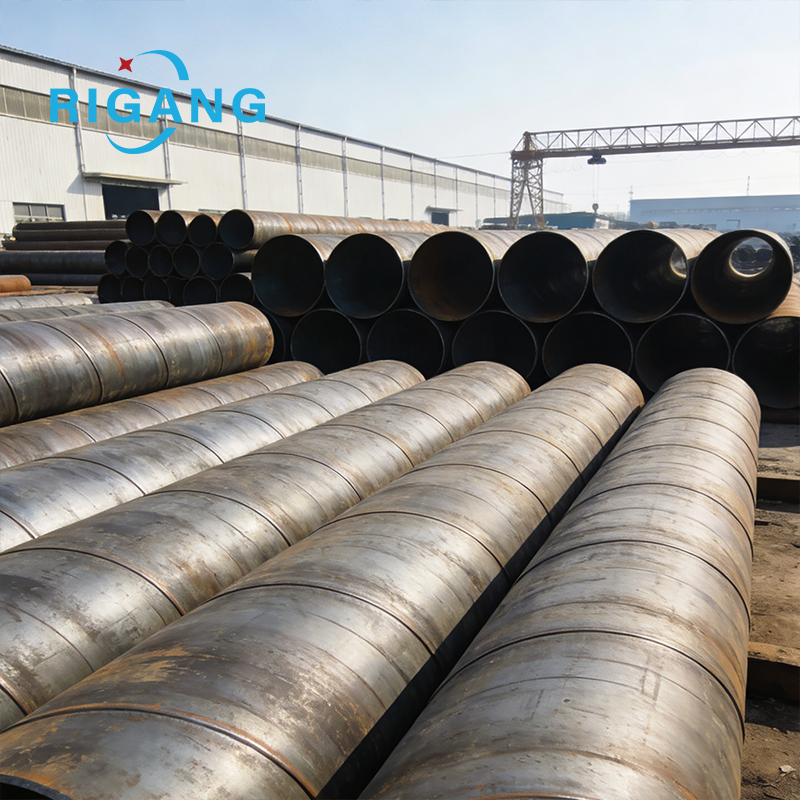

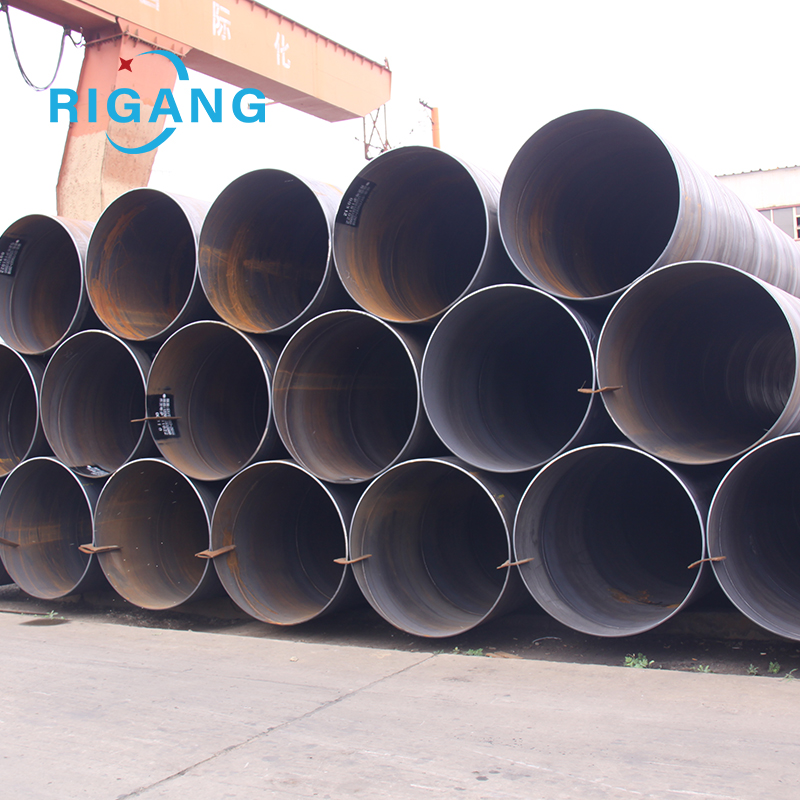

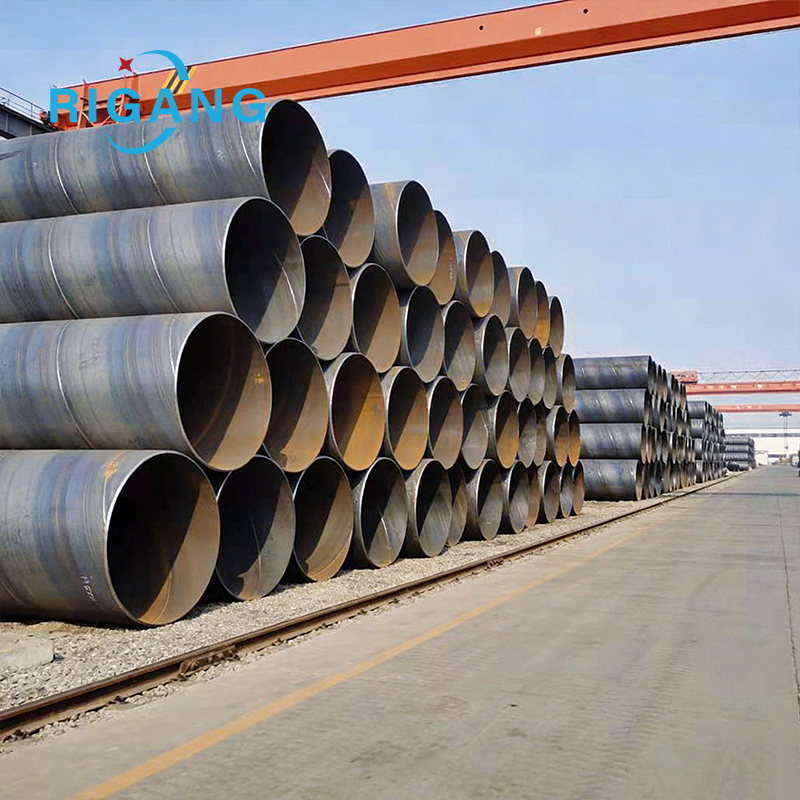

Spiral Welded Pipe

Spiral Welded Pipe
Spiral welded pipe (SSAW) is a type of steel pipe made by coiling hot-rolled steel strip at a specific spiral angle and then welding it.
Compared to the straight seam welded pipe you just learned about, spiral welded pipe has unique advantages in large-diameter and high-pressure transmission applications.

No. 121, Daqiao Road, Licheng District, Jinan City

Product Description
Spot warehousing
Product Inspection
Product Measurement
Customer Feedback
Parameter categoriesSpecific projectsDetailed description/numerical range
Specifications and dimensionsOuter diameter (OD)Φ219mm - Φ3620mm (or even larger)
Wall thickness (WT)6mm - 30mm (customizable)
lengthStandard length is 6m - 12m, custom length production is supported.
Material gradeCarbon structural steelQ235B (most common)
Low alloy high strength steelQ345B (Q355B)
Pipeline steelL245 (B), L360 (X52), X42 - X70
Implementation StandardsMinistry Standard (SY/T)SY/T 5037 (General Fluid Transportation)

SY/T 5040 (For Piling)

Chinese Standard/American StandardGB/T 9711 / API 5L (Oil and Gas Industry)
Mechanical properties (taking GB/T 9711 as an example)L245 material

Yield strength: ≥ 245 MPa

Tensile strength: ≥ 415 MPa

X52 materialYield strength: ≥ 359 MPa

Tensile strength: ≥ 496 MPa

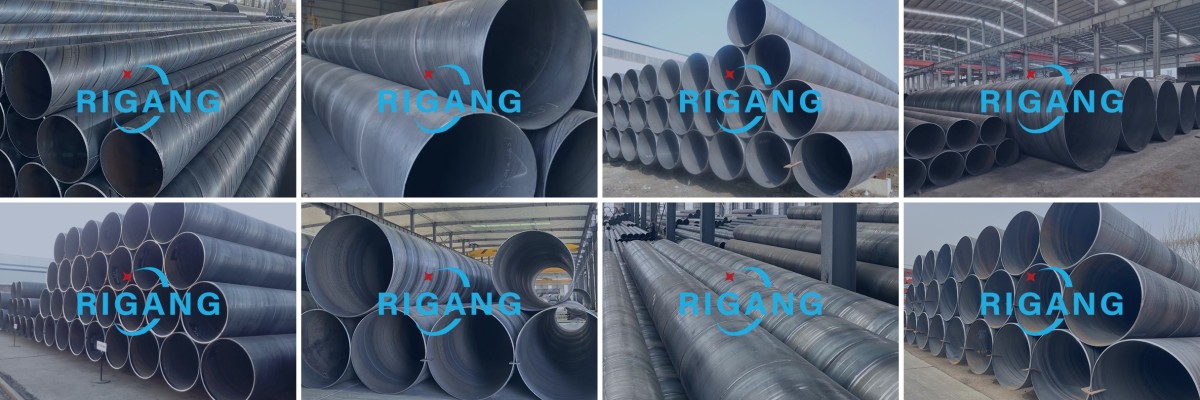

仓库现货2


01

Acid and alkali resistance test

02

Zinc layer experiment

03

Bending test

04

Yield strength test

05

Tensile strength test

06

Spectral detection

07

Hardness testing

08

Chemical composition detection

壁厚测量

Thickness measurement

厚度测量

Thickness measurement

厚度测量666

Thickness measurement

半径测量

Radius measurement

直径测量

Diameter measurement

直径测量2

Diameter measurement

长度测量

Length measurement

涂层测量

Coating measurement
